Description

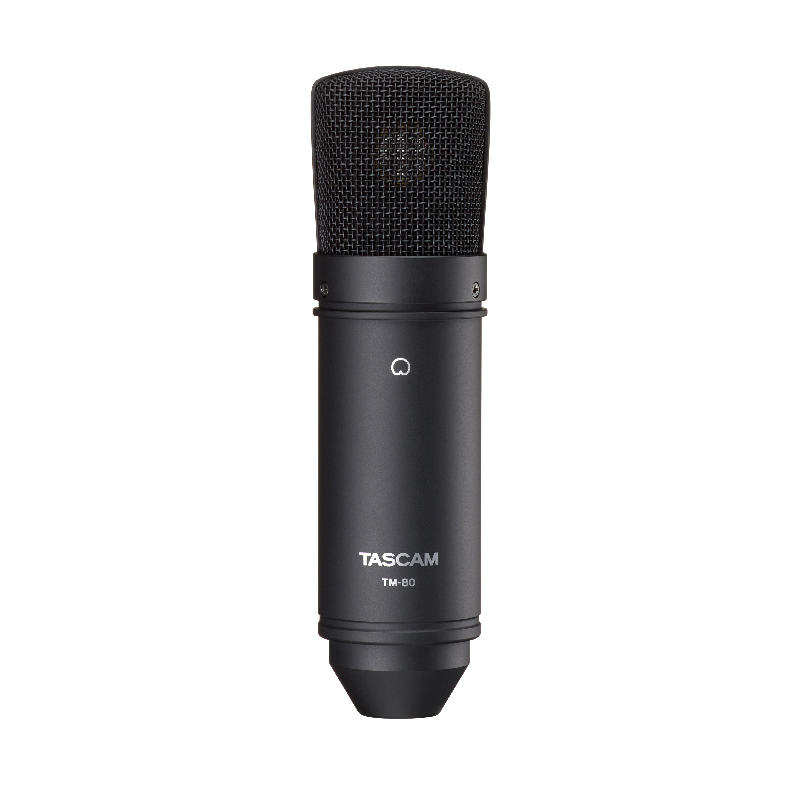

Cardioid Condenser Microphone for a Pro Vocal Sound
A cardioid condenser mic is the perfect all-around mic for vocal and instrument recording, and the unidirectional pickup pattern keeps the recording from sounding too ambient. The TM-80 has an 18mm aluminum diaphragm and a wide frequency response. With a maximum sound pressure rating of 136dB SPL, you can safely use the TM-80 with guitar amps, drums and other loud instruments.
Package includes shock-absorbing suspension, table-top mic stand and mic cable
Included are essential microphone accessories – a shock-absorbing suspension to reduce bass rumble, 6-foot mic cable and table-top mic stand – allowing you to set up at your desktop and record right away.
Polar pattern

Frequency response

Features at a Glance
- Microphone capsule assembly features an 18mm pure aluminum diaphragm
- Cardioid polar pattern
- Frequency response: 20Hz to 20kHz
- Sensitivity: –38dB ±2dB (0dB=1V/Pa at 1kHz)
- Phantom power requirement: DC 9 – 48V
- Output impedance: 200ohm ±–30% (at 1kHz)
- Load impedance: >1k ohm
- Max SPL: 136dB (at 1kHz=1% THD)
- S/N ratio: 77dB
- Housing: Die cast zinc
- Includes: shockmount, mini desk stand, mic cable (6ft. / 1.8m XLRM – XLRF)
