Sale!

GKC-AD

Original price was: RM1,100.00.Current price is: RM990.00.

Drive the Next-Generation Serial GK Interface from a Roland GK-3 or GK-3B Divided Pickup

The latest BOSS synthesizer and V-Guitar products for guitar and bass feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in previous generations. The GKC-AD GK Converter allows you to drive the Serial GK input on a supported device from a Roland GK-3 or GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output.

1 in stock

SKU: GKC-AD Category:

Description

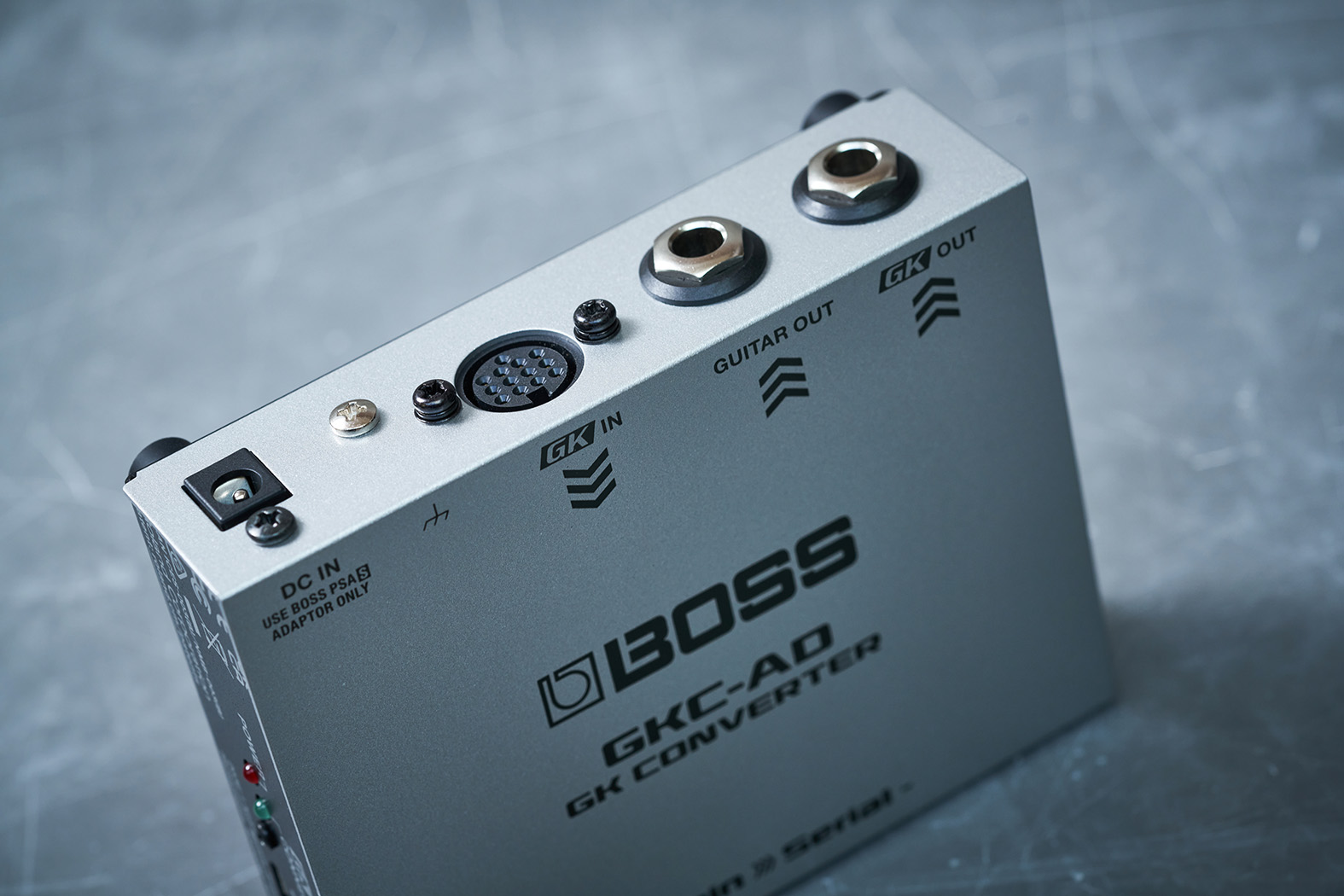

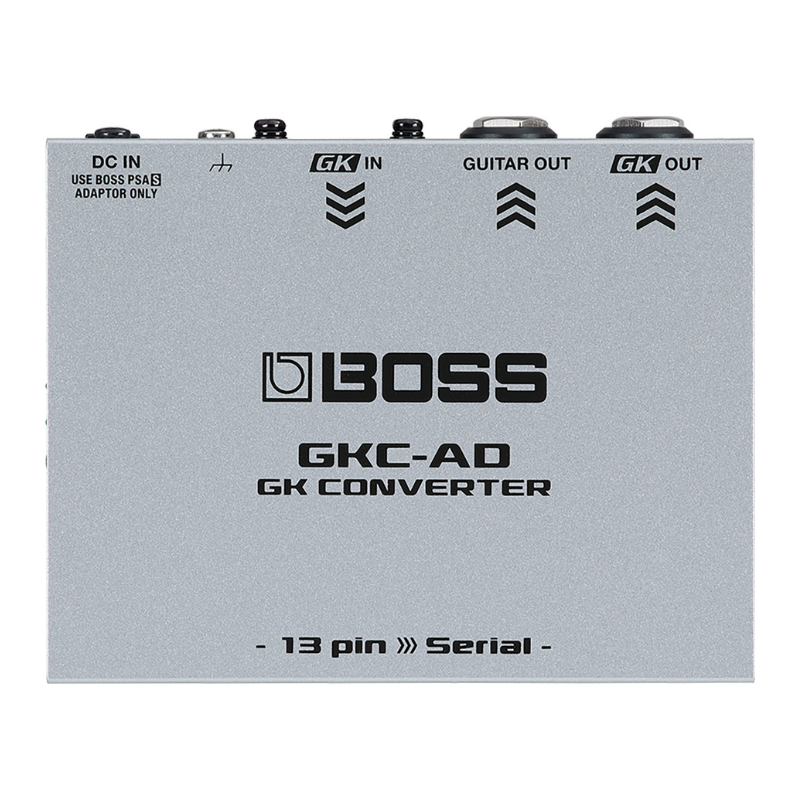

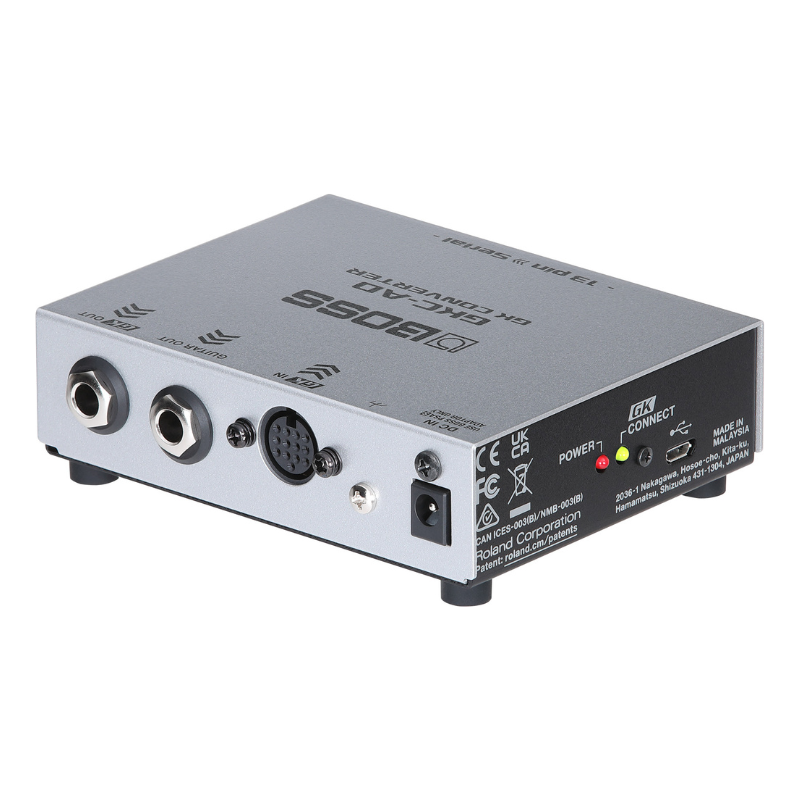

GKC-AD

Standard Features

  • Converts analog 13-pin GK pickup systems to the newly developed Serial GK digital interface
  • 13-pin GK input and Serial GK output
  • Instrument output for passing normal guitar/bass pickup sounds embedded in the 13-pin connection
  • Compact and rugged metal design

Supported Products

The GKC-AD enables you to use the GK-3/GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output with the following products:

BOSS Products
・GM-800 Guitar Synthesizer
・VG-800 V-Guitar Processor

GKC-AD

Additional information

Connectors

GK IN connector: 13 pins DIN type
GK OUT jack: 1/4-inch TRS phone type (for BGK cable only)
GUITAR OUT jack: 1/4-inch phone type
DC IN jack
USB port: USB Micro-B (program update only)
Nominal Output Level

GUITAR OUT: -10 dBu
Recommended Load Impedance

GUITAR OUT: 10 k ohms or greater

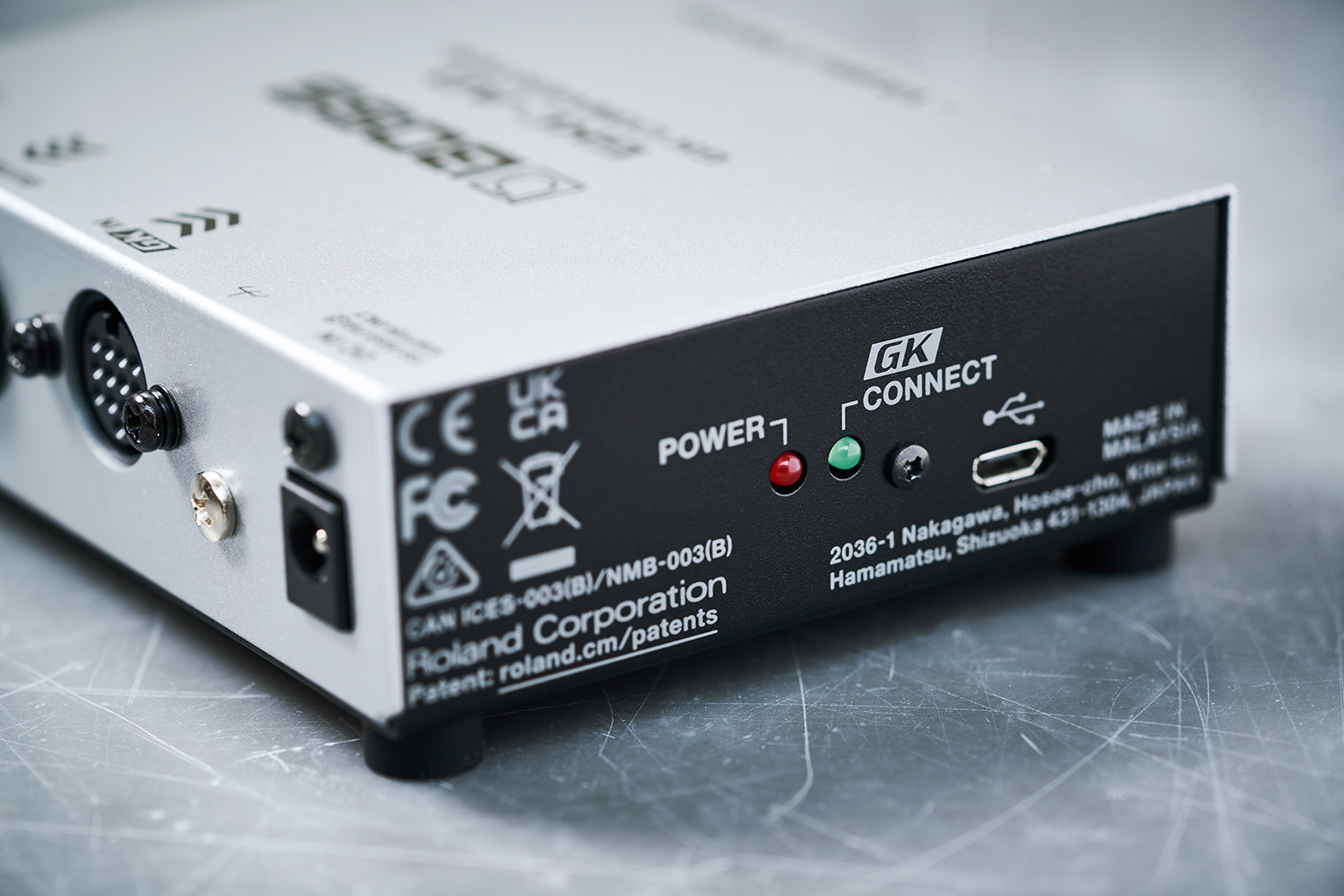

Indicators

POWER indicator
GK CONNECT indicator
Current Draw

240 mA
Power Supply

AC adaptor
Accessories

AC adaptor
Owner’s Manual
Leaflet “USING THE UNIT SAFELY“
Options (sold separately)

Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)
Weight

340 g
