Six-track version of the TR-8S in a compact and affordable package
-
Detailed circuit models of the Roland TR-808, TR-909, TR-606, TR-707, and more
-
Large preset sample library with support for custom user samples
-
FM sound engine for futuristic tones
-
Mix and match sounds for exotic hybrid drum kits
-
Advanced sequencer with sub-steps, flam, step-loop, motion recording, and more
-
Runs on four AA batteries or USB bus power
-
Also functions as a high-quality USB audio/MIDI interface





SPECIFICATIONS
User Drum Kit
128
User Patterns
128

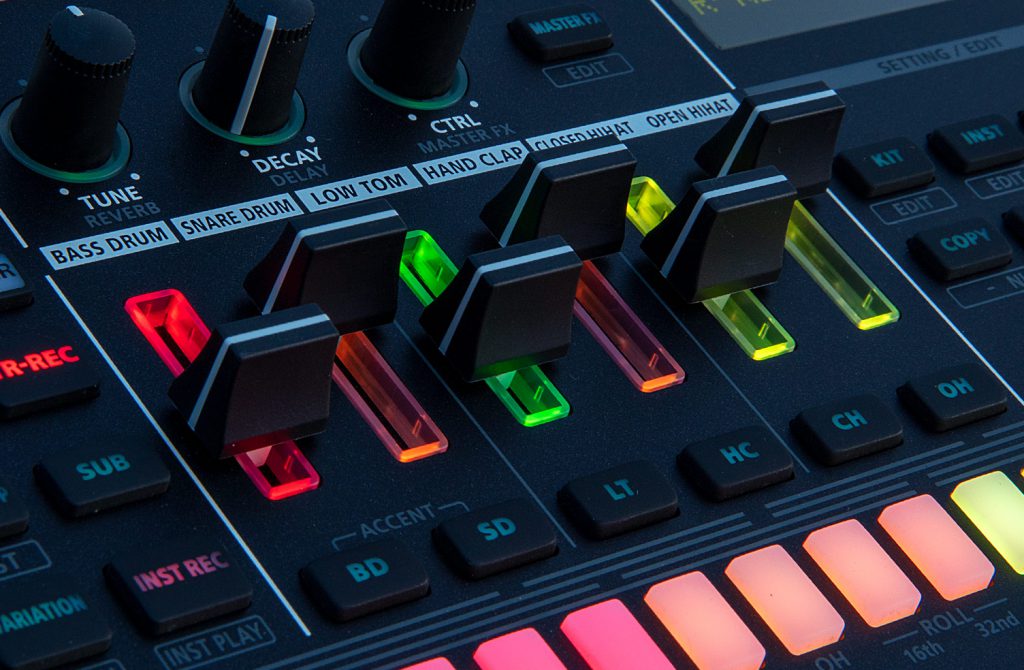

Step Sequencer
6 instrument parts
16 steps per 1 variation
8 (A – H) variations per 1 pattern
2 Fill-in patterns per 1 pattern
INST tone
(Tone can be assigned to each 6 instrument parts freely.)
BASS DRUM: 11 ACB tones
SNARE DRUM: 8 ACB tones
TOM: 19 ACB tones
RIM SHOT: 3 ACB tones
HAND CLAP: 5 ACB tones
HI HAT: 8 ACB tones
CYMBAL: 8 ACB tones
PERCUSSION: 24 ACB tones
FM: 66 tones
PRESET SAMPLE: 300 tones or greater
USER SAMPLE (imported form SD CARD for playback): Avarable format: WAV, AIFF
Total time for all samples: Approximately 600 sec (at 44.1 kHz, mono)
* The maximum length of a single audio file that can be imported is approximately 180 seconds (at 44.1 kHz).
* Available format of Sample:
WAV 96 kHz maximum/8bits, 16 bits, 24 bits, 32 bits, 32 bits float (mono, stereo)
AIFF 44.1kHz, 48kHz, 96 kHz/8bits, 16 bits, 24 bits, 32 bits, 32 bits float (mono, stereo)
Effects
INST FX: THRU, HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR,
TRANSIENT, COMPRESSOR, DRIVE, COMP+DRV, CRUSHER, SATURATOR, FREQ SHIFT, RING MOD, SPREAD
REVERB: AMBI, ROOM, HALL1, HALL2, PLATE, MOD
DELAY: DLY, PAN, TAPE ECHO
MASTER FX: HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR,
TRANSIENT, TRANSIENT2, COMPRESSOR, DRIVE, OVERDRIVE, DISTORTION, FUZZ,
CRUSHER, PHASER, FLANGER, SBF, NOISE
Other: SCATTER (as one of AUTO FILL IN function), SIDE CHAIN

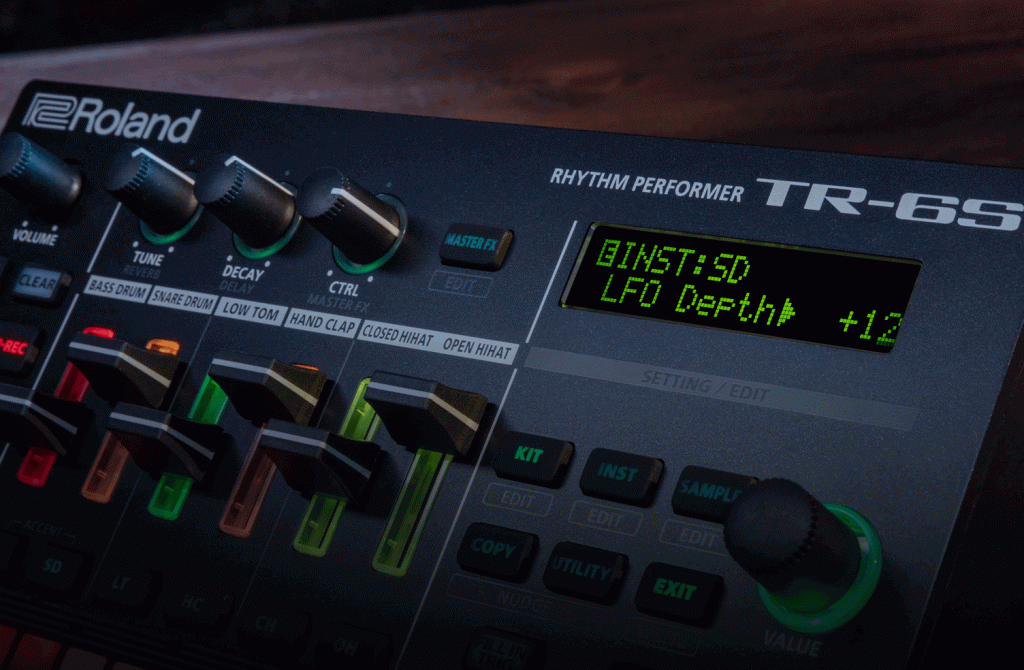

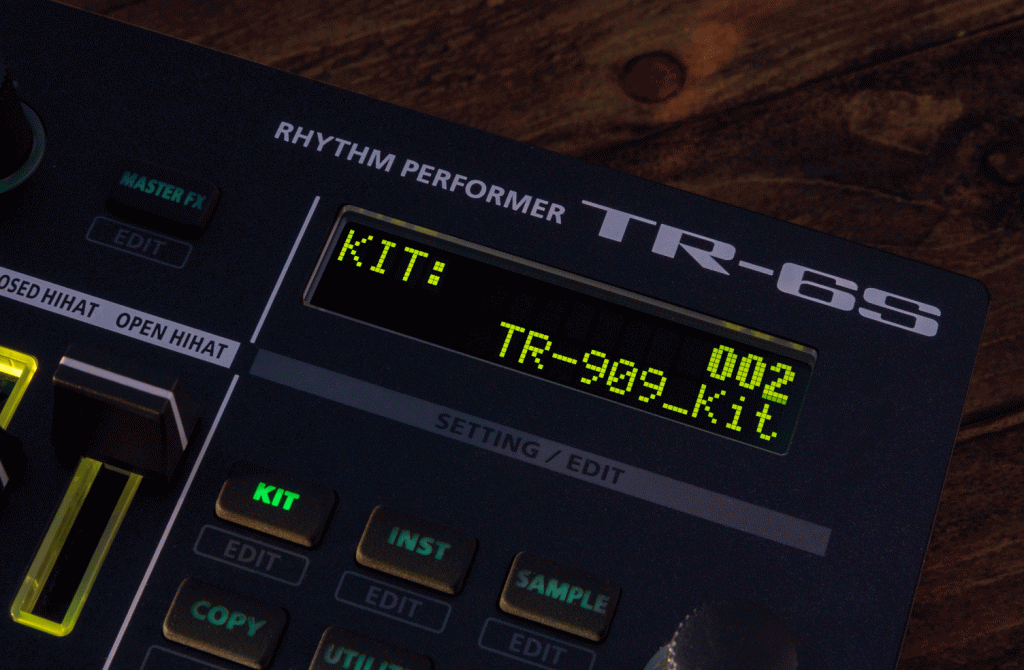

Display
16 characters, 2 line (backlit LCD)
External Storage
SD Card (SDHC supported) for backup/restore function and import sample data
Connectors
PHONES jack: Stereo miniature phone type
OUT(L/MONO, R) jacks: 1/4-inch phone type
MIDI(IN, OUT) connectors
USB port: USB B type (Audio, MIDI)
Power Supply
Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
Obtained via USB port (USB bus power)
Current Draw
500 mA
Accessories
Leaflet “Read Me First”
Alkaline battery (AA, LR6) x 4
SIZE AND WEIGHT
Width
224 mm
8-13/16 inches
Depth
132 mm
5-3/16 inches
Height
60.1 mm
2-3/8 inches
Weight
705 g
1 lb 9 oz
