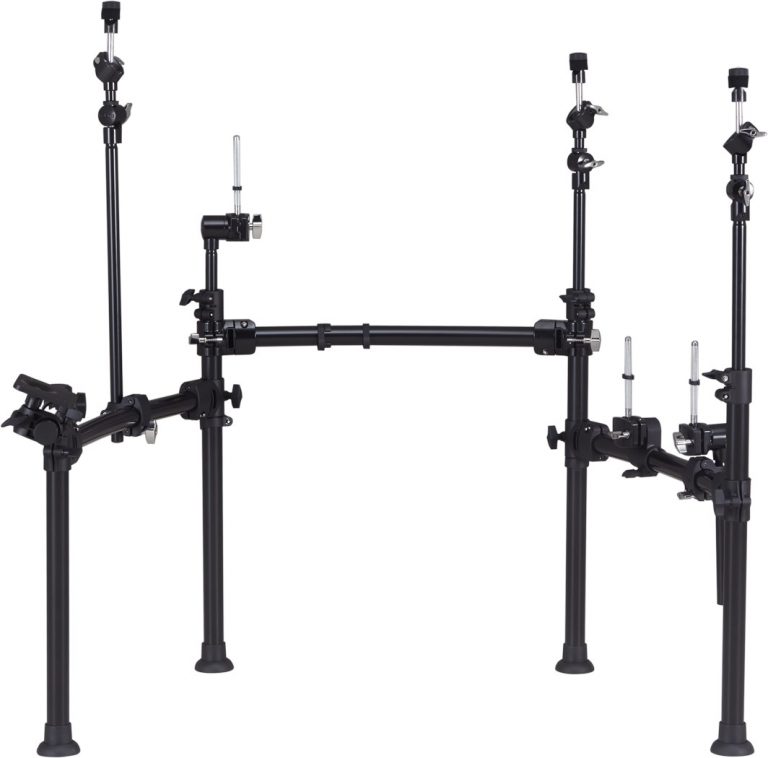

MDS-Grand

COMPACT, FLEXIBLE, AND STABLE RACK STAND FOR TD-50K V-DRUMS

The MDS-Grand is the perfect complement to the flagship TD-50K kit. This compact and flexible rack stand features highly adjustable pad/cymbal arms, ensuring you can set up in the tightest spaces. And if you decide to add a full-size KD-220 Bass Drum or a 22-inch acoustic kick outfitted with the KD-A22 Kick Drum Converter, it’ll fit perfectly beneath the central horizontal bar.

Feature
Specifications

Feature

FEATURE

Compact and rugged V-Drums rack stand
Fast and flexible setup with highly adjustable pad/cymbal arms
Compatible with Roland’s KD-220 Bass Drum or a 22-inch acoustic kick outfitted with the KD-A22 Kick Drum Converter

Specifications

SPECIFICATIONS

Connection cable (concealed in pipes)

Kick plug: 1/4-inch TRS phone type
Tom 1,3,4 plugs: 1/4-inch TRS phone type
Hi-Hat plug: 1/4-inch TRS phone type
Hi-Hat Control plug: 1/4-inch TRS phone type
Crash 1, 2 plugs: 1/4-inch TRS phone type
Tom 2 plug: 1/4-inch TRS phone type (Pad side: female plug)
AUX 1 plug: 1/4-inch TRS phone type (Pad Side: female plug)

Accessories

Cymbal arm x 3
Pad arm x 2
Pad mount
Owner’s Manual
Drum key
Cable clip x 6
Cable tie x 3
Sound module mounting plate

Tube diameter

Stand: 38.1 mm, 1-1/2 inches
Pad arm/Cymbal arm: 22.2 mm, 7/8 inches

Required space for setup

1,350 (W) x 1,050 (D) x 1,100 (H) mm
53-3/16 (W) x 41-3/8 (D) x 43-5/16 (H) inches (drum stand only)

Cymbal rod screw diameter

8 mm
5/16 inches

Weight

15.1 kg
33 lbs 5 oz
(including pad arms, cymbal arms, and connection cables)
