FV-30H/FV-30L

BOSS QUALITY IN SPACE-SAVING DESIGNS FOR YOUR PEDALBOARD

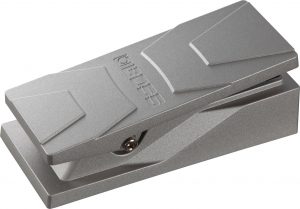

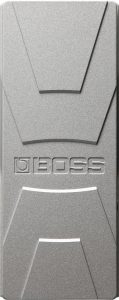

The FV-30H and FV-30L are compact foot volume pedals with kickin’ new designs. They’ve been specially created for saving space on your pedalboard while maintaining the trusted BOSS standard for sound quality, reliability, and durability. These pedals are 100-percent professional grade, aluminum die-cast units, and feature smooth pivot action that supports subtle changes in volume control. Thanks to their small size, the FV-30H and FV-30L offer a huge advantage for traveling musicians and gigging players who need to maximize pedalboard space.

As with the other models in the FV series, two different pedal versions allow you to choose the best type for your specific application:

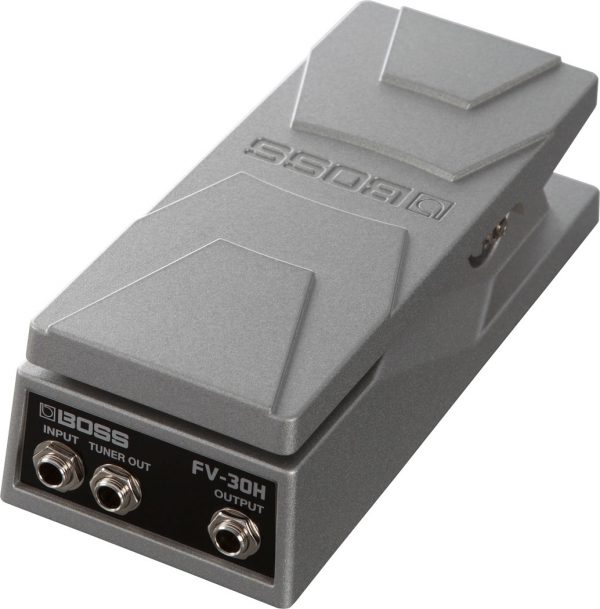

FV-30H—A high-impedance pedal (with dedicated tuner output) that’s best for connecting directly to an electric guitar or bass.

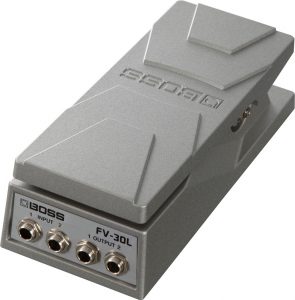

FV-30L—A low-impedance pedal equipped with stereo input/output for stompboxes, keyboards, and other digital instruments.

Click image to enlarge

  • Features
  • Specifications

Features

  • Space-saving volume pedals with rugged aluminum die-cast body designs
  • Silky feel with smooth pivot for maximum control
  • Tuner out jack (FV-30H)
  • Stereo input and output (FV-30L)
  • FV-30H for direct connection to high-impedance gear like electric guitars
  • FV-30L for low-impedance gear like synthesizers and stompboxes

Specifications

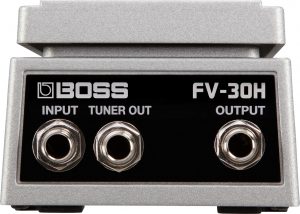

Connectors(FV-30H)

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
TUNER OUT jack: 1/4-inch phone type

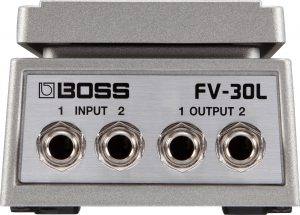

Connectors(FV-30L)

INPUT 1, 2 jacks: 1/4-inch phone type
OUTPUT 1, 2 jacks: 1/4-inch phone type




Accessory

Owner’s Manual

Size and Weight



Width

86 mm
3-7/16 inches


Depth

200 mm
7-7/8 inches


Height

54 mm
2-1/8 inches


Weight

400 g
0 lbs. 15 oz.
