FEATURE
CREATION
At every turn, FANTOM fulfills the need to create. Its smooth, rapid workflow has no confusing modes, frustrating technical limits, or trade-offs with sound quality. FANTOM’s creative process reflects how today’s musicians work, with fluid composition tools, instantly recallable creative environments, and deep computer integration.
SOUND
FANTOM’s flexible and expandable sound engine leverages decades of research and development, dishing out inspiring and authentic electronic, acoustic, and hybrid sounds by the bucketload. Combine multiple synthesis and sampling technologies along with the onboard analog filter for new and unusual sounds—and take advantage of new sound expansions and capabilities as they arrive.
PLAYABILITY
After sound quality, what’s more important than playability? The way an instrument feels under your fingers, and how it helps you express yourself, is vital. FANTOM focuses on the experience of playing, from its immersive keyboard action to its arsenal of performance controls.
SEQUENCING
FANTOM is a complete musical composition platform that excels at fast creation and fluid arrangement. You have RGB pads, a classic TR-REC style pattern sequencer, real-time recording with touchscreen piano-roll editing, and a grid for recording and launching clips. Use any or all, whenever you want.
CONNECTIVITY
While FANTOM is powerful by itself, its powers grow exponentially when connected to other gear like computers or analog synthesizers. FANTOM can control software synthesizers directly from the touchscreen, drive modular and analog synthesizers from its dual CV/Gate outputs, and is also a high-quality audio interface capable of 16 stereo outputs and 3 stereo inputs.

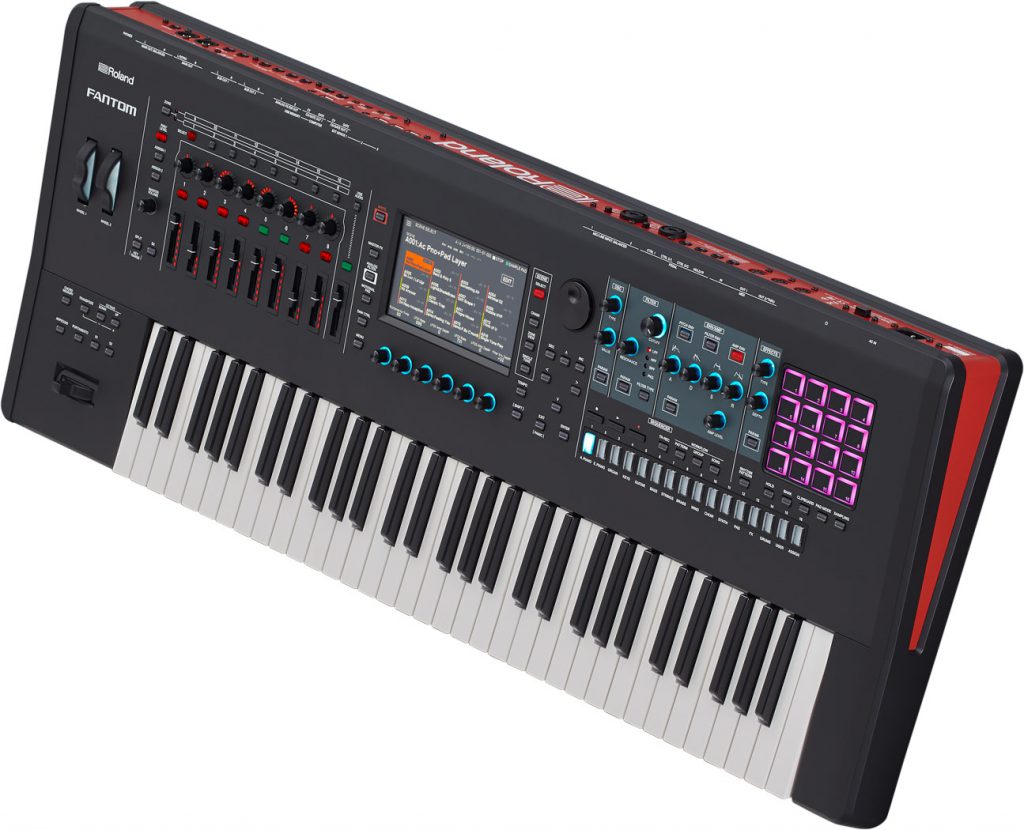

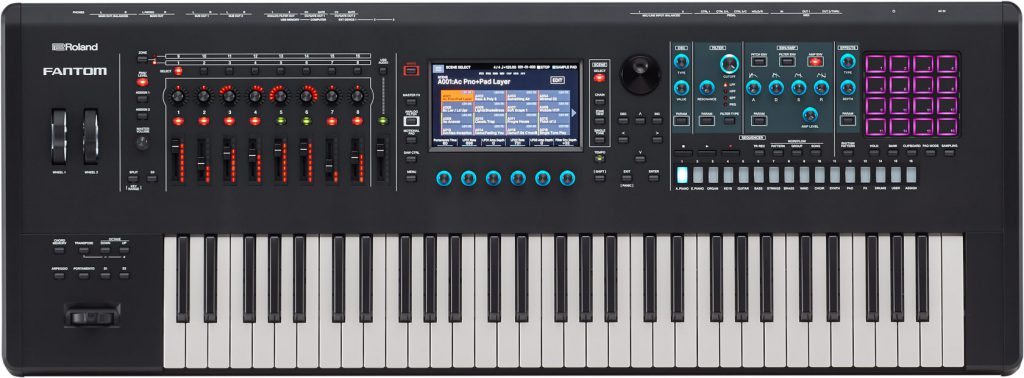

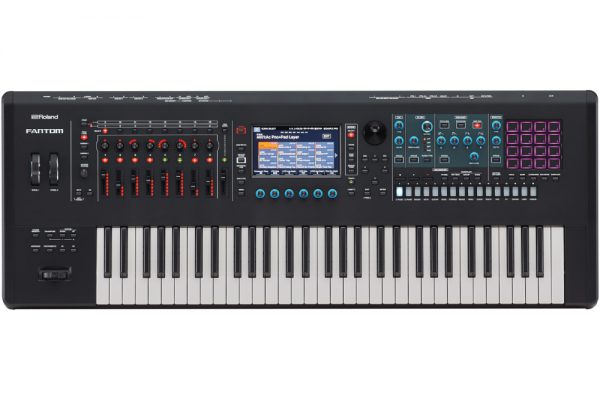

DESIGN
A clean and intuitive layout, premium materials, and our best-ever keyboard action. The result? An instrument that begs to be played.

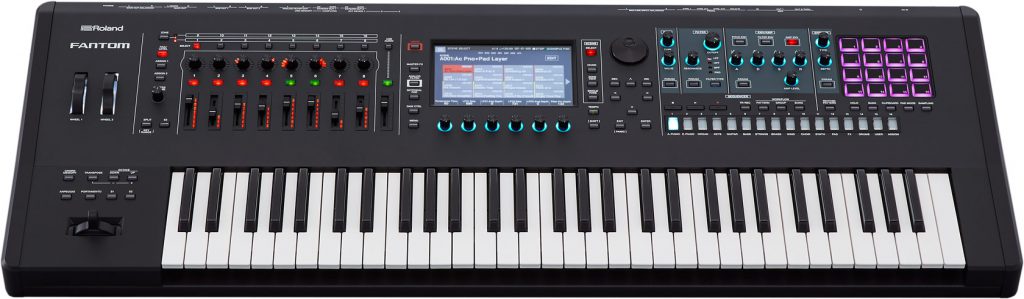

KEYBOARD
Keyboard
61 Keys (semi-weighted keyboard and channel aftertouch)
SOUND GENERATOR
Sound Generator
ZEN-Core
V-Piano Technology
SuperNATURAL Acoustic
* ZEN-Core Tones can import and export.
Expansion
EXZ Series
EXSN Series
* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM’s internal memory.
Parts
16 Zones (Internal + External)
Scenes
128 Scenes x 4 Bank
* The Scenes can import and export.
Tones
Over 3,500 Tones
Over 90 Drum kits
Tone Remain
16 parts (16 zones / 16 scenes).
* Tone Remain does not apply to V-Piano Technology sounds.
Favorite
Rating System: 4 Steps (0-3)
Tone Search / Scene Search
Raiting, Character
Effects
Multi-Effects: 16 systems, 90 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 System, 90 Type
Chorus: 8 types
Reverb: 6 types
Master Compressor
Master EQ
Mic Input Reverb: 6 types
Analog Filter
STEREO
Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass
Drive
Amp
Vocoder
Band: 32
Type: Mono, Stereo
Preset Setting: 10
User Setting: 20
Scene Chain
Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
Set: 100
SEQUENCER
MIDI Tracks
16 (Internal/External)
Group
16
Pattern
8 (per each Track)
Pattern Length
32 measures
Recording Method
Realtime recording, Step recording, TR-REC
Editing Method
Piano roll edit (Touch Edit support)
Song
1 (per Scene)
File format
Original, SMF export/import supported
* Sampler trigger data can be recorded.
SAMPLER
Format
16-bit linear, 44.1/48kHz, WAV/AIFF import supported
Maximum Polyphony
8
Number of Samples
16 Pads x 4 Banks
Sampling Time
The maximum is 60 minutes (the equivalent of approximately 660 MB).
* A total of approximately 2 GB can be saved (including imported WAV files)
OTHERS
Rhythm Pattern
YES
Arpeggio
YES
Chord Memory
YES
Motional Pad
YES
PAD Mode
Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play
AIRA LINK
Yes
* When connect to MX-1
CV/Gate Control
2 x CV/Gate or 3 x CV/1 x Gate
Controllers
Pitch Bend/Modulation Lever (*)
Assignable Switch x 2 (S1/S2)
Control Knob x 8
Slider x 8
USB Audio Slider
Wheel x 2 (*)
Function Knob x 6
Sound Modified Knob x 11 (*)
4 x 4 Pad
* 1024 step editing support
It can be use with Cutoff, Resonance, Attack , Decay , Sustain , Release , Amp , FX Depth.
Display
Graphic Type, 7″, Wide VGA (800 x 480 dots), backlit LCD (Color/Touch screen)

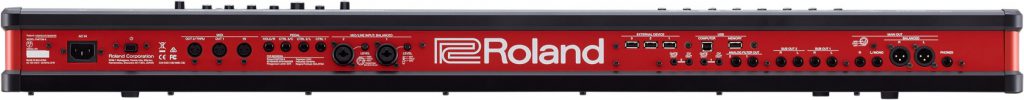

Connectors
Headphones Jack: Stereo 1/4-inch phone type
MAIN OUT Jacks (L/MONO, R) (1/4-inch phone type)
MAIN OUT Jacks (L, R) (XLR type)
SUB OUT1 Jacks (L, R) (1/4-inch phone type)
SUB OUT2 Jacks (L, R) (1/4-inch phone type)
ANALOG OUTPUT Jacks(1,2)(1/4-inch phone type)
Mic/Line Input Jacks: (1,2) (1/4 inch phone type/XLR type)
2 x CV OUT, 2x GATE OUT
FOOT PEDAL JackS(HOLD, CTRL1,CTRL2,CTRL3) (*1)
MIDI connectors (IN, OUT1, OUT2/THRU) (*2)
USB MEMORY Port
USB COMPUTER Port (AUDIO: Max 24bit/96KHz 3 Sereo Output, 16 Stereo Input / MIDI:
3 Port support)
3 x External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. (*3)
*1: 1024 Step value support
*2: High-resolution velocity data output support
*3: Operation is not guaranteed if a generic MIDI device is connected.
External Memory
USB Flash drive (sold separately)
Power Supply
AC 117–240V, 50/60Hz
Power Consumption
50 W
Accessories
Owner’s manual
Power Cord
Options (sold separately)
Keyboard Stand: KS-10Z, KS-12
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash drive (*)
* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.
SIZE AND WEIGHT
Width
1,432 mm
56-7/16 inches
Depth
439 mm
17-5/16 inches
Height
153 mm
6-1/16 inches
Weight
27.7 kg
61 lbs 2 oz
