Fantom-0 Series

Fantom-0 Series

Unify your creative vision..

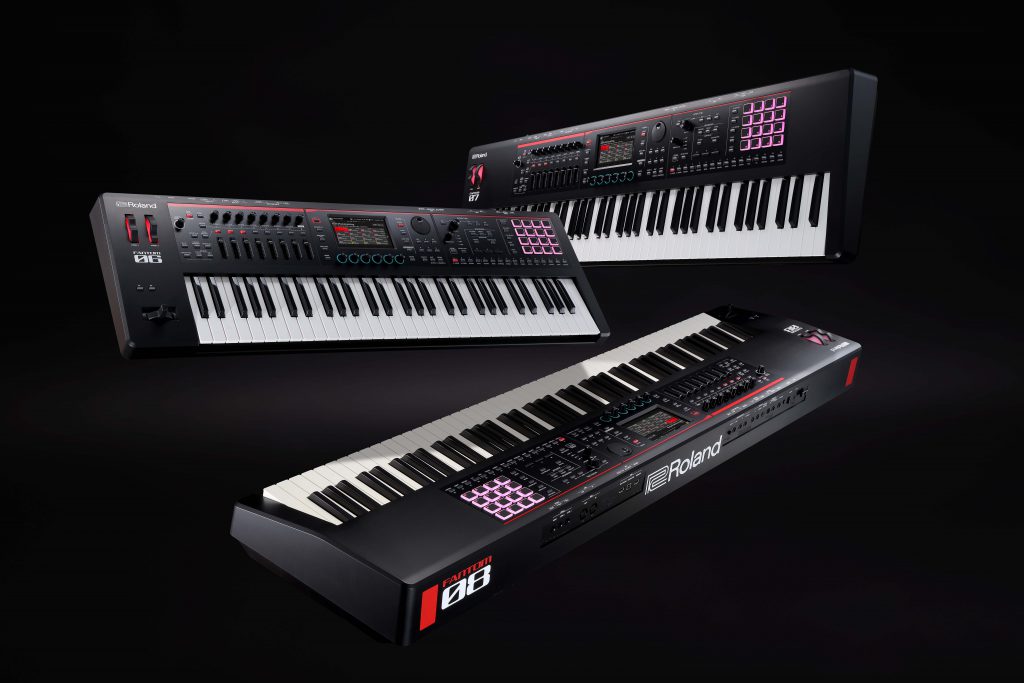

FANTOM-0 brings your creative world together, combining the sonic power and fluid workflow of the top-of-the-line FANTOM series in streamlined instruments that go everywhere your inspiration takes you.

  • Feature
  • Specifications

Feature

Your musical everything.

FANTOM-0 has everything you need to create and perform at the highest level. And with its interactive design and expansive I/O, it blends into every workflow with ease.

FANTOM-0 Series



Extraordinary sounds.

FANTOM-0 includes thousands of professional sounds from Roland’s immense, trendsetting library, with further expansion available through Roland Cloud. Create with synthesizers and rhythm sounds that have defined entire musical genres. Build organic compositions with pianos and other acoustic instruments. Or shape sounds of the future with FANTOM-0’s deep array of modern synthesis tools.

FANTOM-0 Series

Inspiring playability.

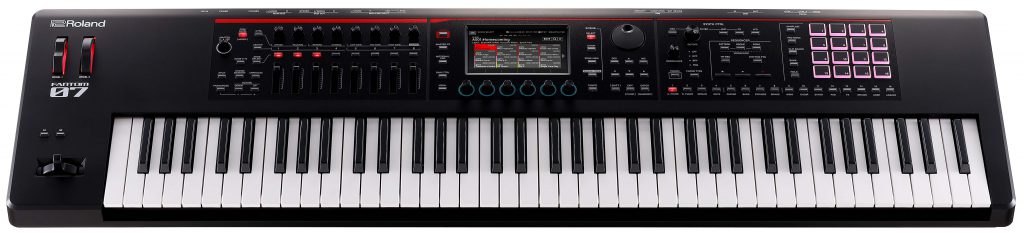

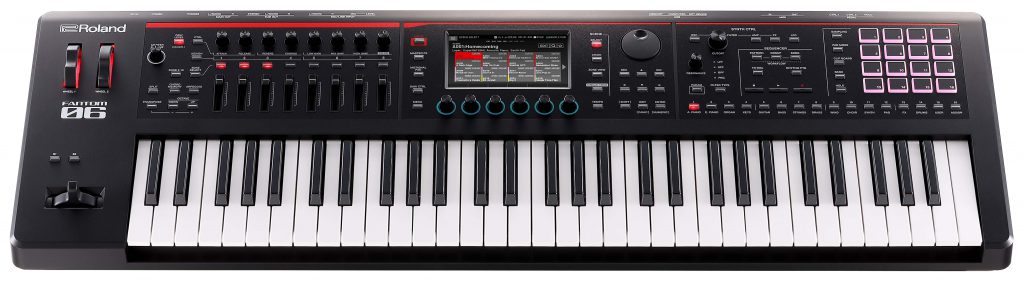

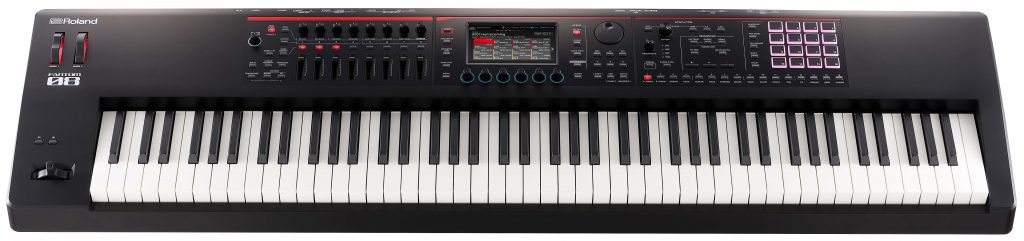

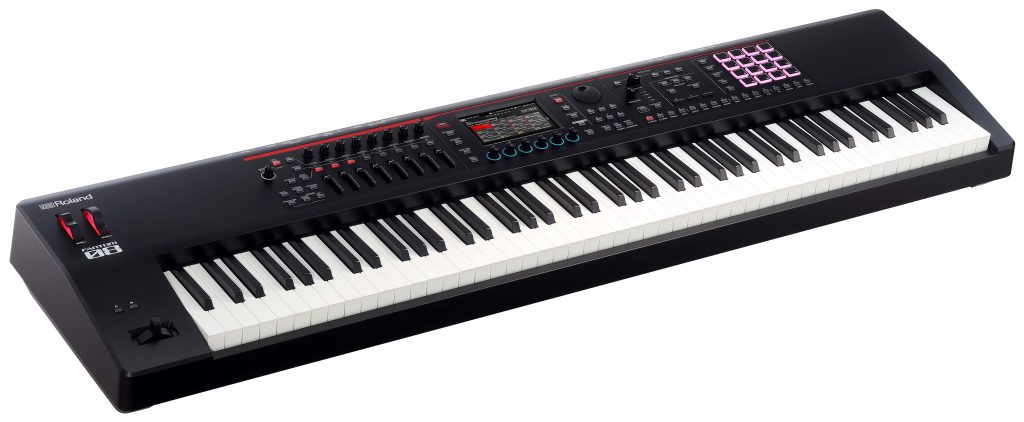

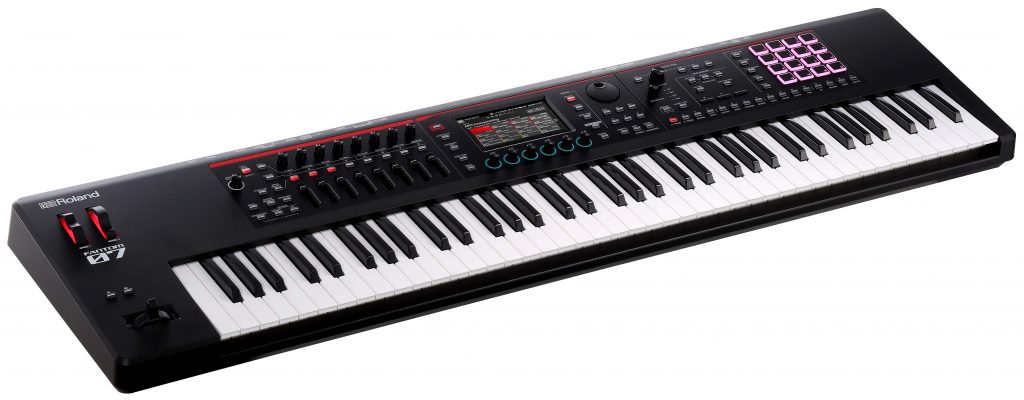

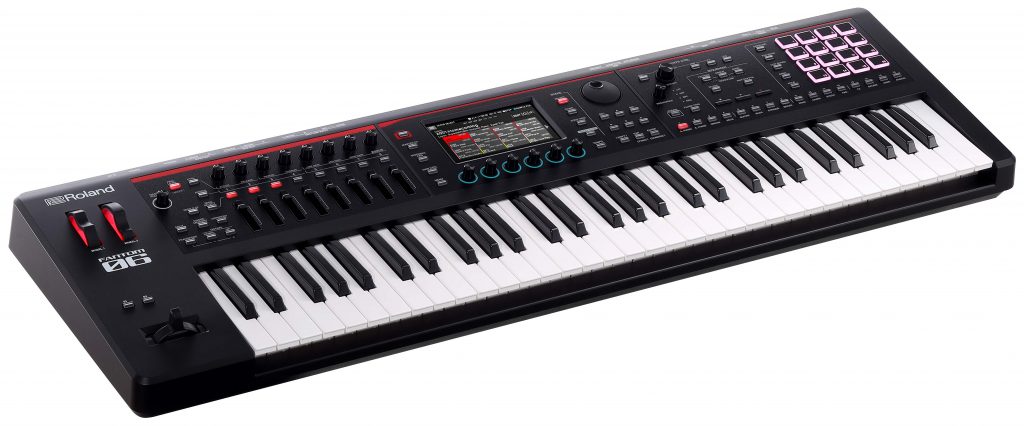

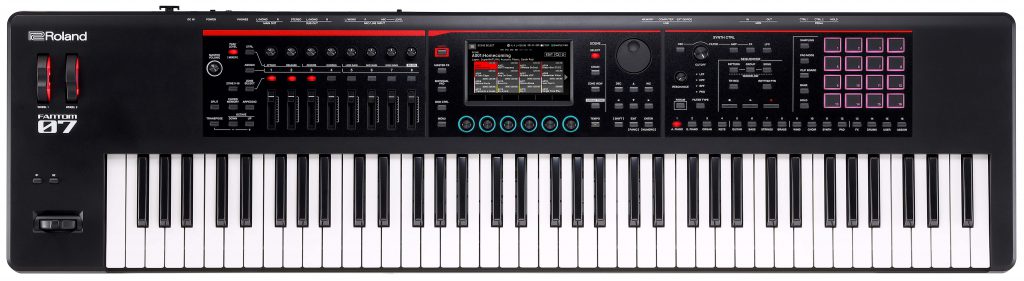

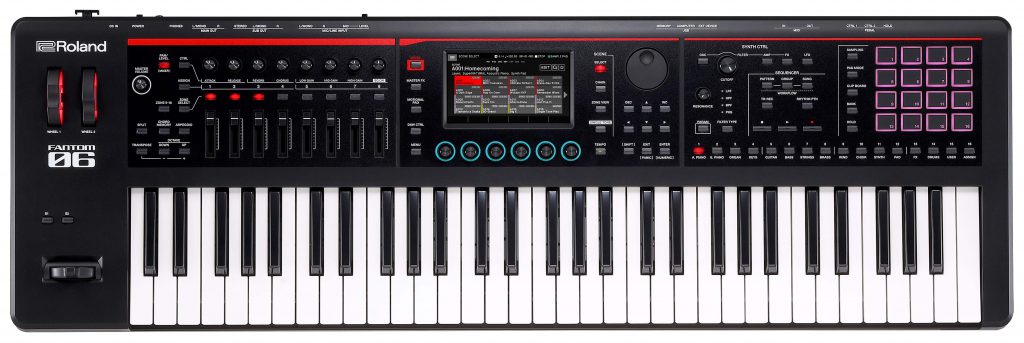

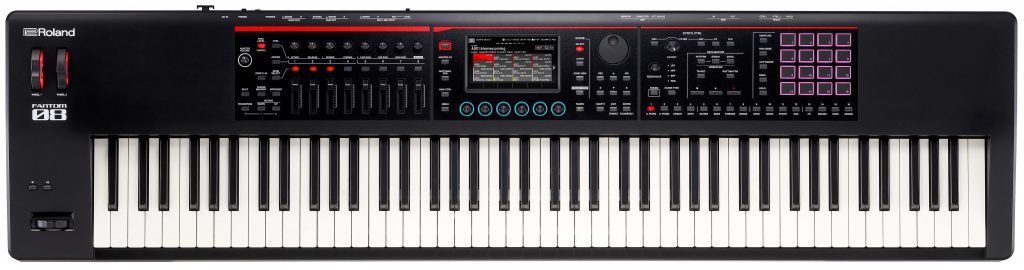

Every FANTOM-0 model feels fantastic under your fingers with responsive custom keyboards and loads of high-res controls. Choose from the 61-note FANTOM-06 or 76-note FANTOM-07 and their synth-action keyboards. Or go for a weighted-action experience with the FANTOM-08 and its 88 ultra-responsive keys.

FANTOM-0 Series



Build songs in a flash.

Designed for non-stop music creation, FANTOM-0 lets you shape sounds and make music without interrupting the flow. With the hands-on knobs and sliders, color touchscreen, quick sampling features, and clip-based sequencer, every session with FANTOM-0 is inspiring, productive, and fun.

FANTOM-0 Series



Your creative hub.

FANTOM-0 slides seamlessly into modern production setups with a built-in 4×32 USB audio interface, while native integration with Logic Pro, MainStage, and Ableton Live lets you interact with the software using the touchscreen and hardware controls. Going further, you can freely combine soft synths with FANTOM-0’s onboard sounds and interface with your favorite MIDI hardware via the dedicated MIDI output.

Specifications

KEYBOARD

FANTOM-0888 Keys (PHA-4 Standard Keyboard: with Escapement and Ivory Feel)
FANTOM-0776 Keys (with velocity)
FANTOM-0661 keys (with velocity)


SOUND GENERATOR

TONEZEN-Core
SuperNATURAL Acoustic
SuperNATURAL Acoustic Piano (EXSN01/03 Preload)
SuperNATURAL Electric Piano (EXSN02 Preload)
VTW Organ (Only ZONE2)
Various MODEL sound generators (Require adding EXM Series)

* ZEN-Core Tones and Model Tones can import and export.
* Backup file has compatibility with FANTOM-6/7/8, but it can read the enabled features only.
ExpansionEXZ Series
EXSN Series
EXM Series

* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM's internal memory.
Parts16 zones (Internal + External)
Scenes128 scenes x 4 bank

* The Scenes can import and export.
Tones3,500 tones or greater
90 Drum kits or greater
Tone Remain8 zones
* When "Scene Remain Switch" enabled.
Tone Remain does not apply to VTW Organ sounds.
FavoriteRating System: 4 steps (0-3)
Tone Search/Scene SearchRating, Character
EffectsMulti-Effects: 16 systems, 90 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 systems, 90 types (Serial/Parallel connection selectable)
TFX: 1 system, 90 types
Input MFX: 1 system, 90 types

Chorus: 9 types
Reverb: 7 types
Master Compressor
Input Reverb: 7 types
Input EQ: 1 system
VocoderBand: 13, 20, 32
Type: Mono, Stereo
Preset Setting: 10
User Setting: 20
Scene ChainChain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
Set: 100
Marker: 36 (0-9, A-Z, a-z) per 1 Chain Set


PATTERN SEQUENCER

MIDI Tracks16
Group16
Pattern8 (per each track)
Pattern Length64 measures
Recording MethodRealtime recording, Step recording, TR-REC
Editing MethodPiano roll edit (Touch Edit/Automation support), Microscope
Song1 (per Scene)
File formatOriginal, SMF export/import supported

* PAD Sampler trigger data can be recorded.


SMF PLAYER

FormatSMF (Format 0/1)
MIDI tracks16
Tempo range5-300 BPM
Transpose function-5-+6 semitone
Track SoloYes
A/B loop functionYes

* The pattern sequencer and SMF player can be used in each scene.
They cannot be used at the same time.
Track MuteYes


SAMPLER - KEYBOARD MULTISAMPLE

Format16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported.
Number of Samples2,048
Number of Multisamples128
Sampling TimeThe maximum is 2 minutes 44 second (1 Sample).

* A total of approximately 256 MB (Share with Expansion titles)
* Keyboard Multisample can import and export as ZEN-Core Tone.


SAMPLER - PAD SAMPLER

Format16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported
Maximum Polyphony8
Number of Samples16 pads x 4 banks
Sampling TimeThe maximum is 60 minutes (the equivalent of approximately 660 MB).

* A total of approximately 2 GB (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.


SAMPLER - INTERNAL STORAGE SPACE FOR FILES

Size2 GB


OTHERS

Rhythm PatternYes
ArpeggiatorYes
Chord MemoryYes
Motional PadYes
PAD ModeSample Pad,Note Pad,Partial Sw/Sel,DAW Control,Zone Mute,Zone Solo,Kbd Sw Group,Rhythm Pattern,Pattern,Variation Play,Group Play
AIRA LINK* When connect to MX-1
ControllersPitch Bend/Modulation lever *1
Assignable Switch x 2 (S1/S2)
Control knob x 8
Slider x 8
Wheel x 2 *1
Function knob x 6
Sound Modified knob x 2 *1
4 x 4 Pad

*1: 1,024 step editing support
It can be use with Cutoff, Resonance.
DisplayGraphic Type, 5.5" (1,280 x 720 dots), backlite LCD (Color/Touch screen, Screensaver, Wallpaper support)

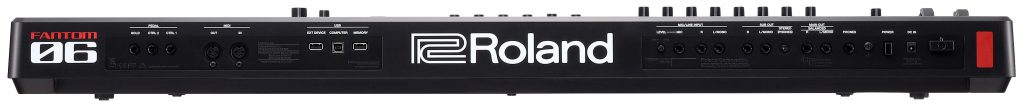

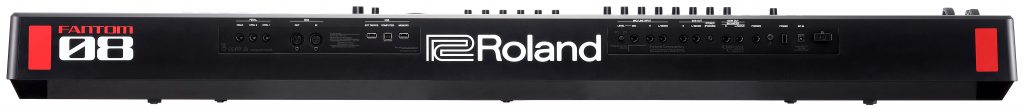

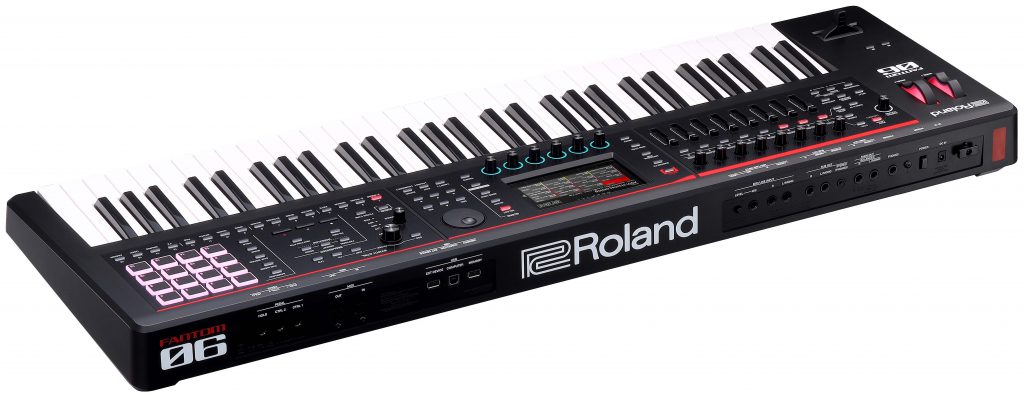

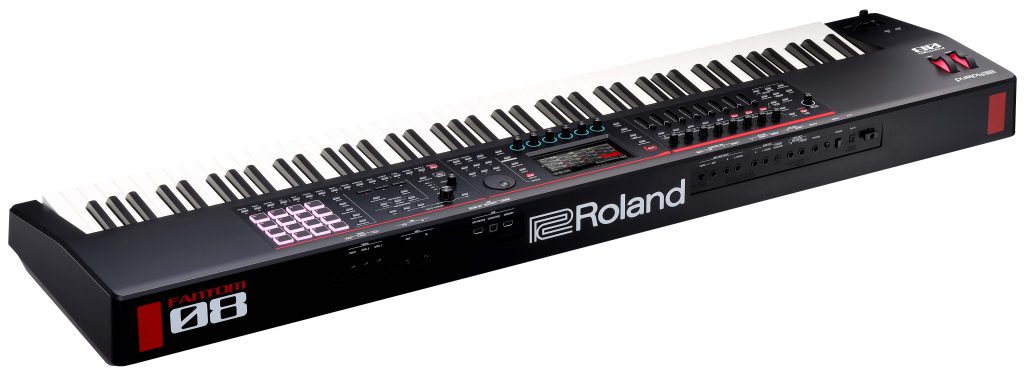

ConnectorsHeadphones jack: Stereo 1/4-inch phone type
MAIN OUT jacks (L/MONO, R) (1/4-inch TRS type)
SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
SUB OUT STEREO (PHONES) jacks: Stereo miniature phone type PHONES Support
Mic Input jacks: 1/4 inch TRS type
Line Input jacks: (L/MONO,R) (1/4 inch phone type)
FOOT PEDAL jacks(HOLD, CTRL1, CTRL2)
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (AUDIO/MIDI)
External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
Audio InterfaceMax 24 bit/96 KHz
Record 16 Stereo Channel
Playback 2 Stereo Channel
External MemoryUSB Flash drive (sold separately)
Power SupplyAC Adaptor
Power Consumption1,300 mAh
AccessoriesOwner's Manual
AC adaptor
Options (sold separately)Keyboard Stand:
KS-G8B, KS-10Z, KS-12, KS-20X
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash drive


SIZE AND WEIGHT

FANTOM-081,393 x 354 x 138 mm
14.8 kg

FANTOM-071,218 x 323 x 95 mm
7.0 kg
FANTOM-061006 x 323 x 95 mm
6.0 kg

Make music everywhere.

FANTOM-0 instruments are easy to carry from your home studio setup to rehearsal rooms and performance stages. They weigh significantly less than most other professional keyboards, thanks to molded body designs that are sleek, attractive, and ultra-rugged.

FANTOM-0 Series



Next-generation synthesis.

Explore the influential sounds of Roland’s storied past and craft the sounds of tomorrow with the ZEN-Core Synthesis System, our most advanced synth engine to date.
