TAKING THE “WORK” OUT OF THE MUSIC WORKSTATION

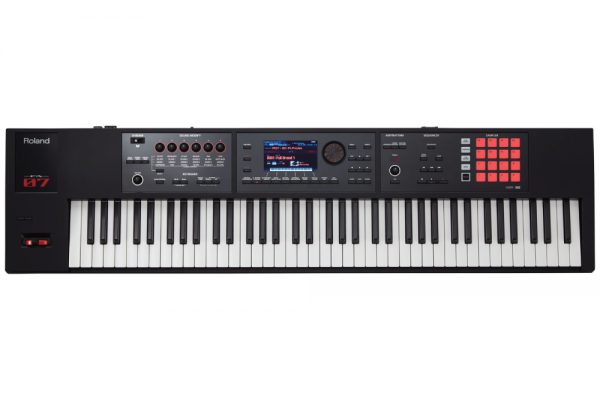

76 keys (semi-weighted keyboard with velocity)
SOUND GENERATOR SECTION
128 voices (varies according to the sound generator load)
SuperNATURAL Drum Kit
PCM Drum Kit
* GM2 compatible sounds are included.
Wave Expansion Slots
* The wave expansion slots are rewritable internal waveform memory. You can download data from the Axial sound library site and write it via a USB flash drive into the FA’s internal wave memory (slot).
Multi-Effects: 16 systems, 68 types (Vocoder can be used only on part 1.)
Part EQ: 16 systems
Drum Part COMP+EQ: 6 systems
Chorus: 3 types
Reverb: 6 types
Master Compressor (This can be changed to Insert FX (78 types).)
Total Effects (TFX): 29 types
Mic Input Reverb: 8 types
Original, SMF export/import supported, WAV export supported
* Sampler trigger data can be recorded.
16-bit linear, 44.1 kHz, WAV/AIFF/MP3 import supported
Number of Samples
16 Pads x 4 Banks (for each song)
* Samples cannot be used as wave data for the sound engine.
Pitch Bend/Modulation Lever
Assignable Switch x 2 (S1/S2)
Control Knob x 6
5-inch Graphic Color LCD
SD Card (SDHC supported)
Headphones Jack: Stereo 1/4-inch phone type
MAIN Output Jacks (L/MONO, R): 1/4-inch TRS phone type
Sub Output Jack: Stereo 1/4-inch phone type
AUDIO INPUT Jacks
LINE: Stereo miniature phone type
GUITAR/MIC: 1/4-inch phone type
FOOT PEDAL Jacks (CTRL 1, CTRL 2, HOLD)
MIDI Connectors (IN, OUT)
USB FOR UPDATE Port
USB COMPUTER Port (USB Hi-Speed AUDIO/MIDI)
(Use a USB cable and a computer with a USB port that support USB 2.0 Hi-Speed.)
DC IN Jack
Leaflet “USING THE UNIT SAFELY”
SD Card (installed in the product when shipped from the factory)
SD Card Protector (installed in the product when shipped from the factory)
Options (sold separately)
Keyboard Stand (*1): KS-18Z, KS-12
Pedal Switch: DP series
Expression Pedal: EV-5
USB Flash Memory (*2)
Wireless USB Adapter: WNA1100-RL
*1 When using the KS-18Z, ensure that the height of the unit is one meter or lower.
*2 Use a commercially available USB flash drive or a USB flash drive sold by Roland. However, we cannot guarantee that all commercially available USB flash drives will work with this unit.
SIZE AND WEIGHT
18 lbs. 12 oz.
